Dufour 560 Grand Large zu Verkaufen

Windmessanlage, UKW-Funk, Radar, Log, Kartenplotter, GPS, Echolot, Autopilot

Warmwasseranlage, Landanschluss 220V, Klimaanlage, Inverter, Generator, Ruder – Bugstrahlruder, Batterieladegerät

Teakdeck, Sprayhood, Gangway, Deckdusche, Bimini-Top, Badeplattform, Badeleiter

Waschmaschine, Mikrowelle, Kühlschrank, Grill, Geschirrspülmaschine, Backofen

Radio, Lautsprecher im Cockpit, CD

Radarreflektor, Bilgenpumpe man., Bilgenpumpe elektr.

Rollgenua, Lazy Jacks, Lazy bag, Großsegel – Lattengroß, el. Winschen

Polsterbezüge, Cockpittisch

Manufacturer Provided Description

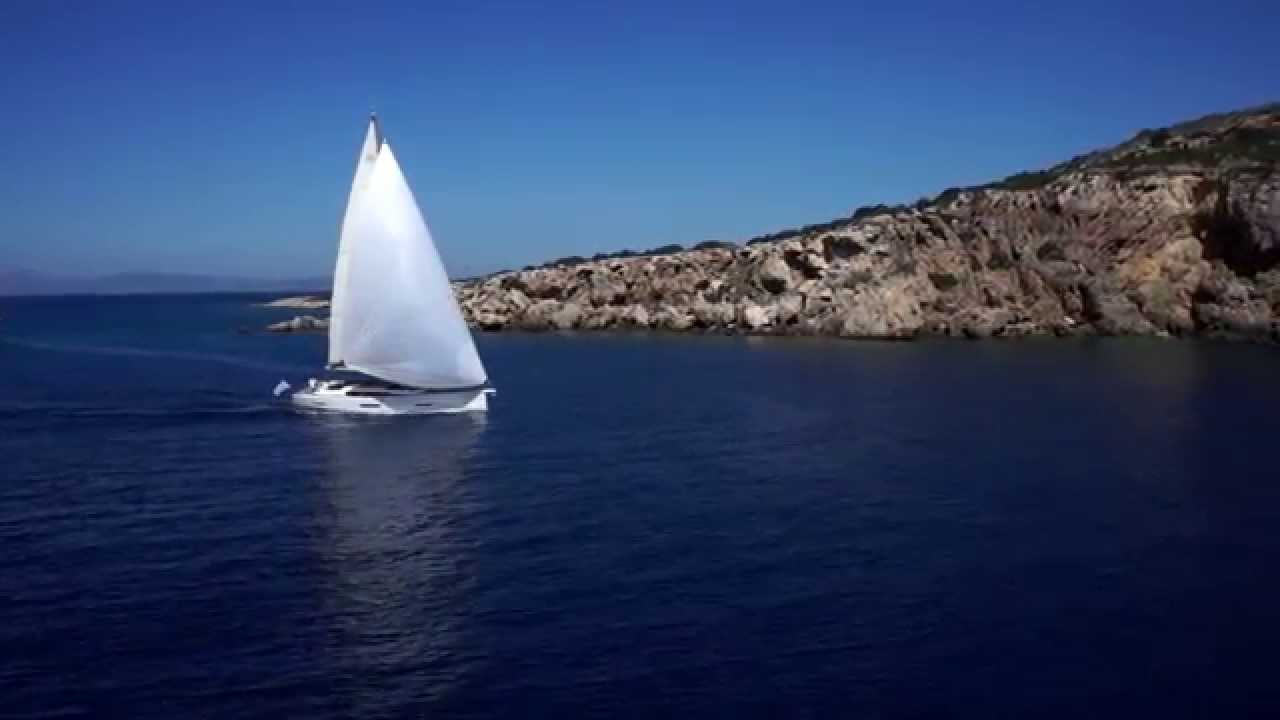

The Dufour 560 Grand Large flagship sets the highest standards when it comes to aesthetic appeal. The yacht exudes modern elegance, luxury and dynamism with its sweeping lines and uniquely DUFOUR top fixed hatch, with angled corners and horizontal sleek side windows, the GL 560 delivers a striking visual statement.

Very balanced hull shape, with powerful aft sections, low wetted surface area and a very effective set of appendages (keel & rudder). The high ballast ratio and increased form stability of the hull enables the boat to support a powerful sailplan without sacrificing cruising comfort and safety. The sail plan has been designed to guarantee maximum performance with minimum effort. The fixed bowsprit, the self tacking jib and the boom inclined forward are all examples of a sail plan that is derived from solo sailor open 60, where ease of handling in race mode are mandatory.

Construction
Hull: Composite sandwich hand-laminated polyester.
PVC panels are vacuum-bonded for better adhesion to laminate.
Structure: Hull bottom counter-moulded, floors laminated into the hull.
Gelcoat: NPG gelcoat with first mat impregnated with NPG resin forming an optimum barrier against osmosis.
Decoration: Grey for waterline and decoration line
Deck: Sandwich with injected PVC foam core
Ballast: Keel in cast iron with stainless steel bolts bear on stainless back-plates (optional shallow draft)
Rudder: Semi-elliptical shape, filled with closed-cell epoxy foam.
Rudder stock: Solid stainless steel.
Rudder quadrant: Stainless steel cables and quadrant 610 mm diamter.
Non-slip deck surface: Non-slip structured deck surface.

Rigging and Sails
Mast: Anodized aluminium with 2 levels of swept spreaders
Rigging: 9/10 fractional
Mast stepping: On deck
Lights: Anchor and steaming lights and deck flood (LED)
Topping lift: Boom topping lift cleats.
Boom: Anodized aluminium equipped for 2 continuous reefs.
Furler: Manual roller furling genoa system (FACNOR).
Standing rigging: Continuous in stainless single-strand cable, chrome-plated bronze rigging screws, comprising: forestay, backstay bridle with twin rigging screws, inter and lower shrouds.
Backstay: double mechanically adjusted
Running rigging: “Running rigging in pre-stretched textile including: main and genoa halyards, boom topping lift, main and genoa sheets, 2 continuous reef lines, leech tensioner, 1mainsheet car adjustments, furling line, downhaul tackle. (MAIN and JIB halyard in spectra)
Mainsail: 2 wide reef strips, with battens and bag.(Dacron)
Genoa: Furling genoa with UV-protection (Dacron)
